FIGURE NR 3

Lspr-rot = Minimum detectable crack length for rotating sensors.

S = Movement between two rotations.

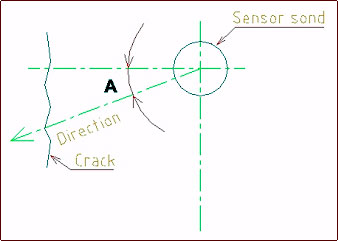

FIGURE NR 4

For safe crack detection, the surface scanning must be selected so the sensor sond crosses the crack with an angle (A), less than 45 degrees (A<45).
